BS-BT82490CH
1 / 2BS-EK…HOCH

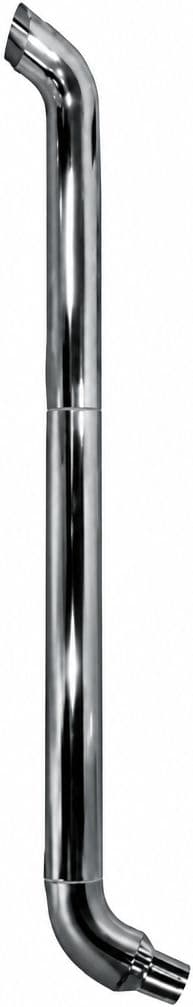

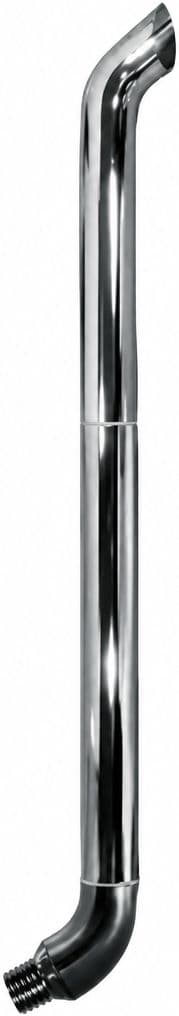

Elbow Exhaust Kit HO, 18" Spool
Built to the truckUniversal — cut to the stack diameter on the truck
Complete elbow stack kit on a 18" (457.2 mm) spool with a 5" bottom: top pipe, spool, four clamps, two brackets and the bolts. Top is curved top, slant cut.
Available finishes
Chrome-plated steel1
No prices on the site. After checkout we confirm the price and the freight to your destination and send the invoice.
Specification
- Part number
- BS-EK<diameter><top L><spool L>HOCH
- Spool
- 18" (457.2 mm)
- Top diameters
- 5" (127 mm) · 6" (152.4 mm) · 7" (177.8 mm) · 8" (203.2 mm) · 10" (254 mm)
- Top length
- 54" (1372 mm) · 60" (1524 mm)
- Spool length
- 52" (1321 mm) · 55" (1397 mm)
- One-piece top
- 96" · 108" · 112" · 118" · 120"
- Kit
- Top pipe, spool, 4 clamps, 2 brackets, 8 bolts
- Shape
- curved top, slant cut
Fitment
The catalogue publishes this frame as a universal fit rather than against a named cab. It is built to the truck: we cut the bracket set once the VIN confirms the bumper and headlight geometry.
Send the VIN to contact@freight-parts.com and we confirm the whole quote before anything is cut.
