AP210

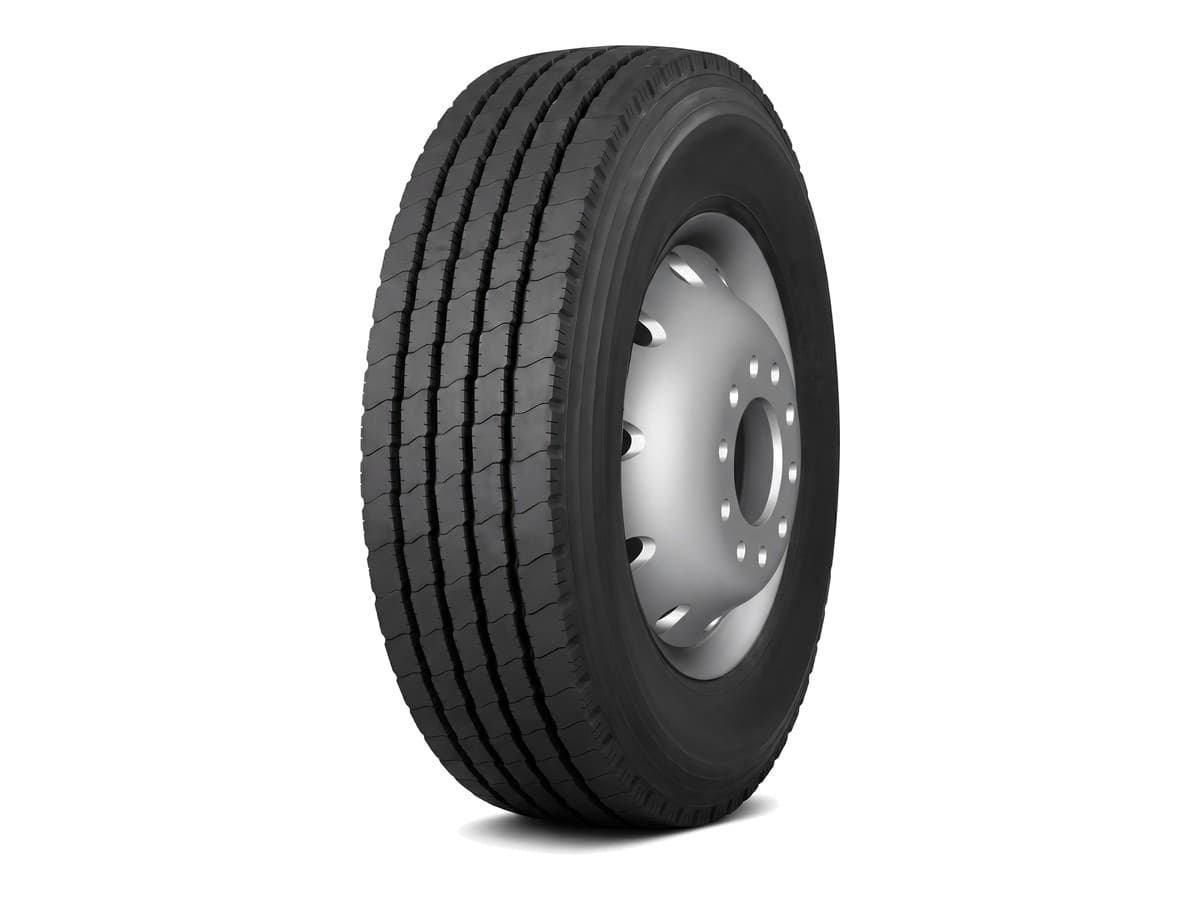

Lancaster AP210 Robust specialty trailer tire
Truck & bus radial from Lancaster, robust specialty · trailer. Offered in 215/75R17.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Rubber compound for generating less heat
- Abrasion resistance tread for better tread wear
- Deep grooves provide good controlling for all terrain types
- Designed for spread axle, low flatbeds, and specialty trailers
Specification
- Brand
- Lancaster
- Pattern
- AP210
- Type
- Truck & bus radial (TBR)
- Position
- Robust specialty · trailer
- Sizes
- 215/75R17.5
- Ply rating
- 14–16 PR
- Tread depth
- 12.8 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 215/75R17.5 | 14 | 126/124 M | 6.00 | 767 mm | 211 mm | 1700 kg | 1600 kg | 700 kPa | 12.8 mm |
| 215/75R17.5 | 16 | 135/133 L | 6.00 | 767 mm | 211 mm | 2180 kg | 2060 kg | 850 kPa | 12.8 mm |
