AP280

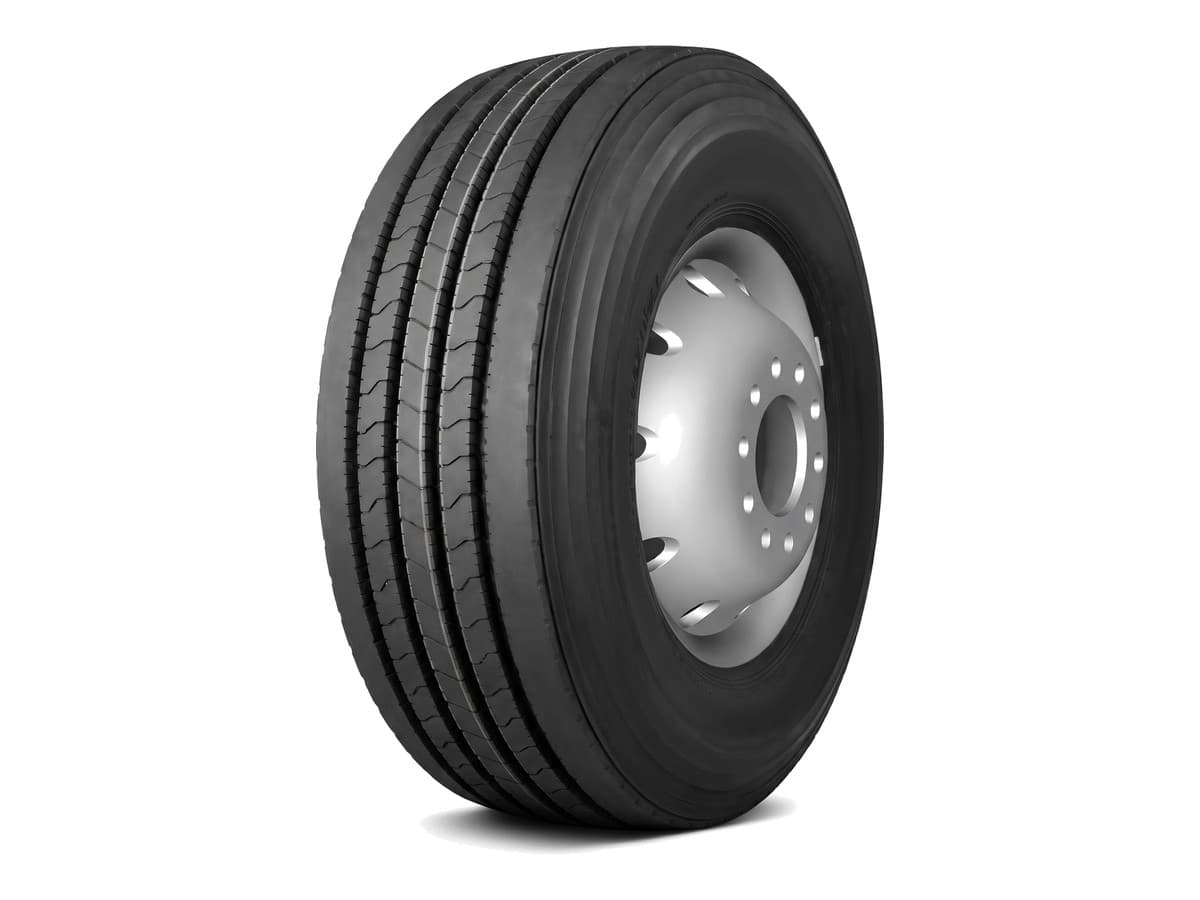

Lancaster AP280 Line-haul premium steer tire
Truck & bus radial from Lancaster, line-haul · premium steering. Offered in 11R22.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Special rubber compound for better fuel economy
- Side groove engineered for even wear, and generating less heat
- Side groove offers better chipping resistance
- Optimized for steer position, and better balanced
Specification
- Brand
- Lancaster
- Pattern
- AP280
- Type
- Truck & bus radial (TBR)
- Position
- Line-haul · premium steering
- Sizes
- 11R22.5
- Ply rating
- 14–16 PR
- Tread depth
- 15 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 144/142 L | 8.25 | 1054 mm | 279 mm | 2800 kg | 2650 kg | 720 kPa | 15 mm |
| 11R22.5 | 16 | 146/143 L | 8.25 | 1054 mm | 279 mm | 3000 kg | 2725 kg | 830 kPa | 15 mm |
