DM288

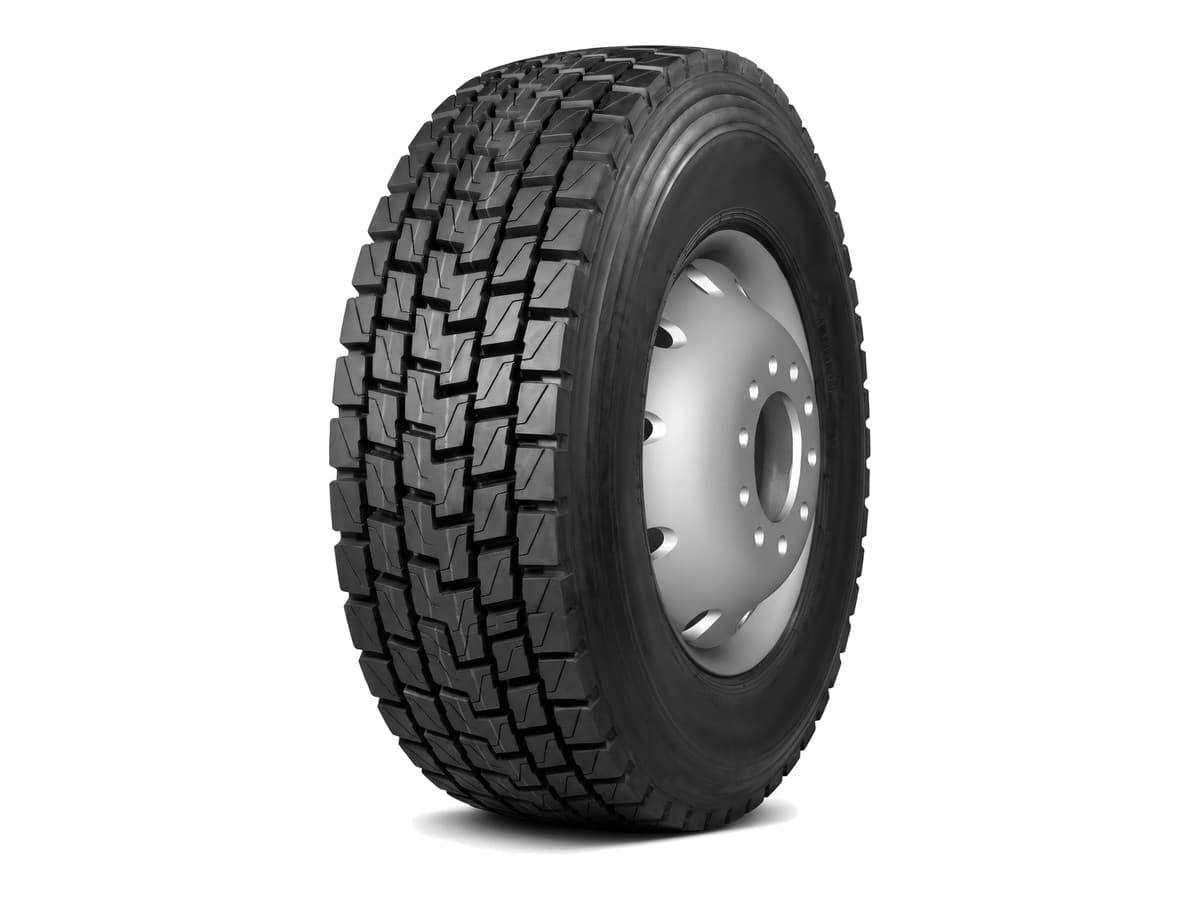

Lancaster DM288 Regional A/T drive tire
Truck & bus radial from Lancaster, regional A/T · drive. Offered in 5 sizes, 11R22.5 to 315/80R22.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Large lug designed for enhanced handling, and for all terrain types
- Wide directional tread surface for improved mileage and even wear
- Ideal for wet, mud and snow road conditions with outstanding traction/stopping characteristics
- Tough rubber compound formula fights chipping and cutting
Specification
- Brand
- Lancaster
- Pattern
- DM288
- Type
- Truck & bus radial (TBR)
- Position
- Regional A/T · drive
- Sizes
- 11R22.5 · 12R22.5 · 13R22.5 · 295/80R22.5 · 315/80R22.5
- Ply rating
- 14–20 PR
- Tread depth
- 19–22.5 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 144/142 M | 8.25 | 1065 mm | 279 mm | 2800 kg | 2650 kg | 720 kPa | 19 mm |
| 11R22.5 | 16 | 146/143 M | 8.25 | 1065 mm | 279 mm | 3000 kg | 2725 kg | 830 kPa | 19 mm |
| 12R22.5 | 18 | 152/148 L | 9.00 | 1096 mm | 300 mm | 3550 kg | 3150 kg | 850 kPa | 22.5 mm |
| 13R22.5 | 18 | 154/151 L | 9.75 | 1136 mm | 320 mm | 3750 kg | 3450 kg | 830 kPa | 22.5 mm |
| 295/80R22.5 | 18 | 152/149 L | 9.00 | 1050 mm | 298 mm | 3550 kg | 3250 kg | 830 kPa | 21.5 mm |
| 315/80R22.5 | 18 | 154/151 L | 9.00 | 1082 mm | 312 mm | 3750 kg | 3450 kg | 830 kPa | 21.5 mm |
| 315/80R22.5 | 20 | 161/154 J | 9.00 | 1082 mm | 312 mm | 4625 kg | 3750 kg | 900 kPa | 21.5 mm |
