DR270

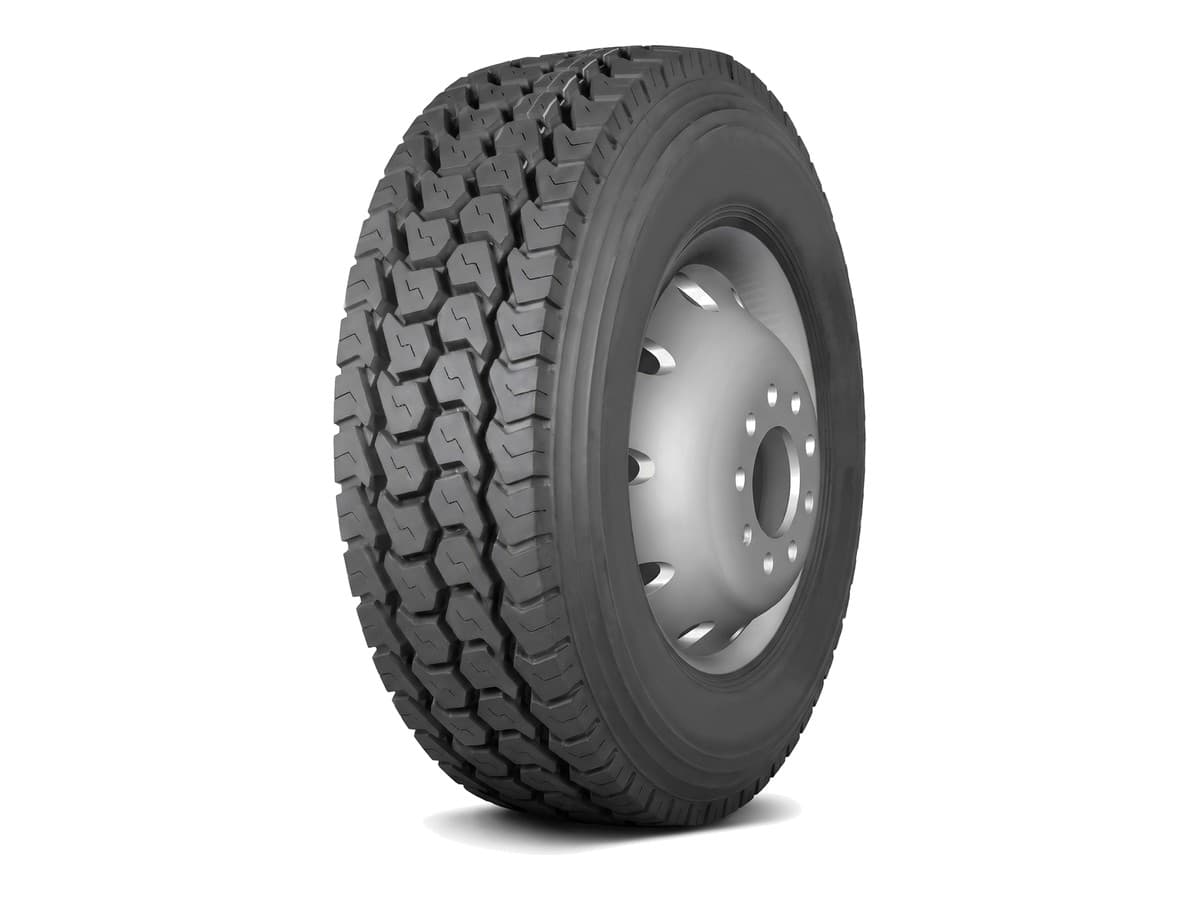

Lancaster DR270 Closed-shoulder drive tire
Truck & bus radial from Lancaster, closed-shoulder · drive. Offered in 3 sizes, 295/75R22.5 to 285/75R24.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Traditional look, redesigned to be extraordinary
- Advanced rubber compound, redesigned for more fuel efficiency
- Uncompromised overall performance
- Lug redesigned for long distance driving and even wear
Specification
- Brand
- Lancaster
- Pattern
- DR270
- Type
- Truck & bus radial (TBR)
- Position
- Closed-shoulder · drive
- Sizes
- 295/75R22.5 · 11R24.5 · 285/75R24.5
- Ply rating
- 14–16 PR
- Tread depth
- 22.5 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 14 | 144/141 L | 9.00 | 1020 mm | 298 mm | 2800 kg | 2575 kg | 760 kPa | 22.5 mm |
| 295/75R22.5 | 16 | 146/143 K | 9.00 | 1020 mm | 298 mm | 3000 kg | 2725 kg | 830 kPa | 22.5 mm |
| 11R24.5 | 14 | 146/143 L | 8.25 | 1116 mm | 279 mm | 3000 kg | 2725 kg | 720 kPa | 22.5 mm |
| 11R24.5 | 16 | 149/146 K | 8.25 | 1116 mm | 279 mm | 3250 kg | 3000 kg | 830 kPa | 22.5 mm |
| 285/75R24.5 | 14 | 144/141 L | 8.25 | 1056 mm | 283 mm | 2800 kg | 2575 kg | 760 kPa | 22.5 mm |
| 285/75R24.5 | 16 | 147/144 K | 8.25 | 1056 mm | 283 mm | 3075 kg | 2800 kg | 830 kPa | 22.5 mm |
