LB100

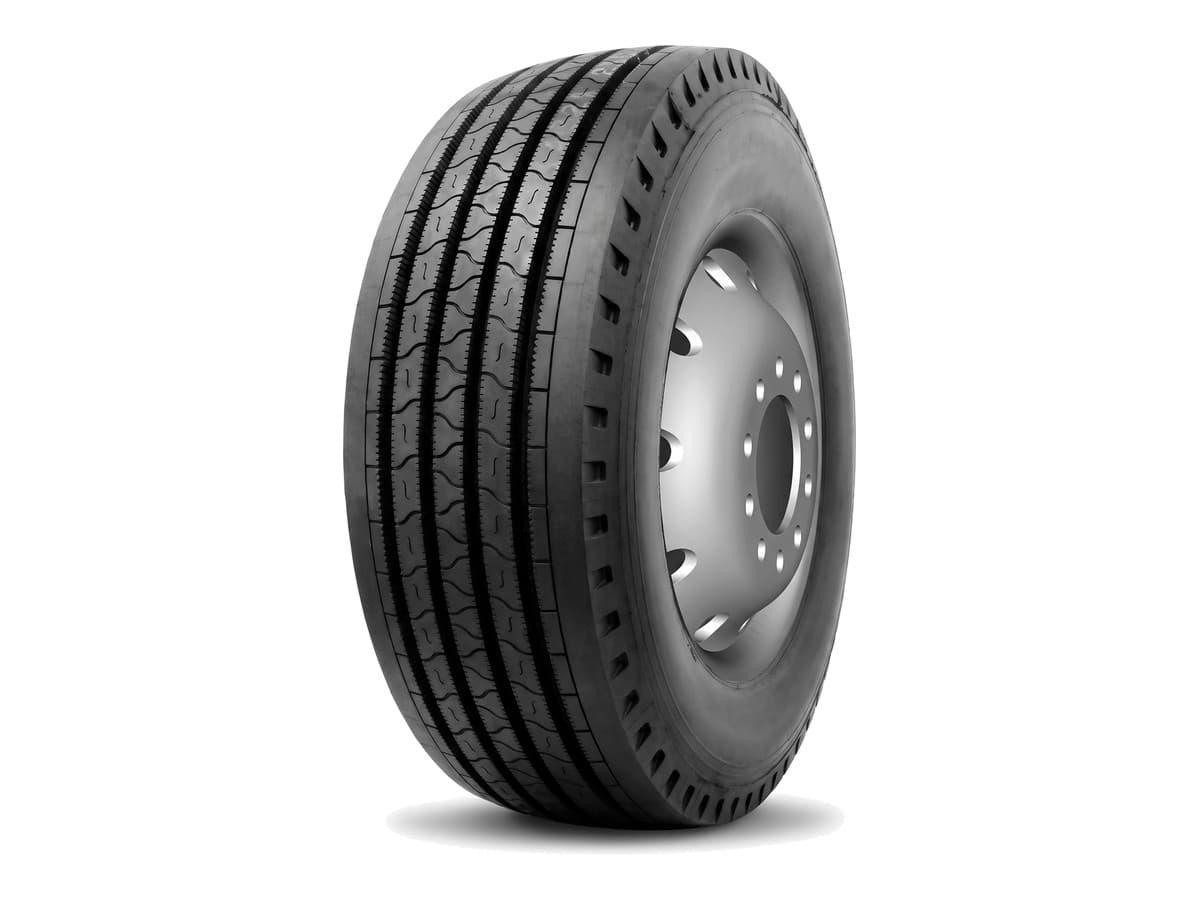

Lancaster LB100 Robust line-haul all-position tire
Truck & bus radial from Lancaster, robust line-haul · all-position. Offered in 4 sizes, 235/75R17.5 to 255/70R22.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Spin tested to minimize out of round or unbalanceable issues
- Durable shoulder design helps maintain even wearing under high scrub driving conditions
- Carefully engineered grooves and sipes
- Reinforced sidewalls fight against impacts when used as trailer application
Specification
- Brand
- Lancaster
- Pattern
- LB100
- Type
- Truck & bus radial (TBR)
- Position
- Robust line-haul · all-position
- Sizes
- 235/75R17.5 · 225/70R19.5 · 245/70R19.5 · 255/70R22.5
- Ply rating
- 14–16 PR
- Tread depth
- 13.5–15 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 235/75R17.5 | 16 | 132/129 M | 6.75 | 797 mm | 233 mm | 2000 kg | 1850 kg | 830 kPa | 13.5 mm |
| 225/70R19.5 | 14 | 128/126 M | 6.75 | 811 mm | 226 mm | 1800 kg | 1700 kg | 760 kPa | 14 mm |
| 225/70R19.5 | 16 | 130/128 L | 6.75 | 811 mm | 226 mm | 1900 kg | 1800 kg | 830 kPa | 14 mm |
| 245/70R19.5 | 16 | 135/133 M | 7.5 | 839 mm | 248 mm | 2180 kg | 2060 kg | 830 kPa | 15 mm |
| 255/70R22.5 | 16 | 140/137 M | 7.5 | 930 mm | 255 mm | 2500 kg | 2300 kg | 830 kPa | 15 mm |
