MX813

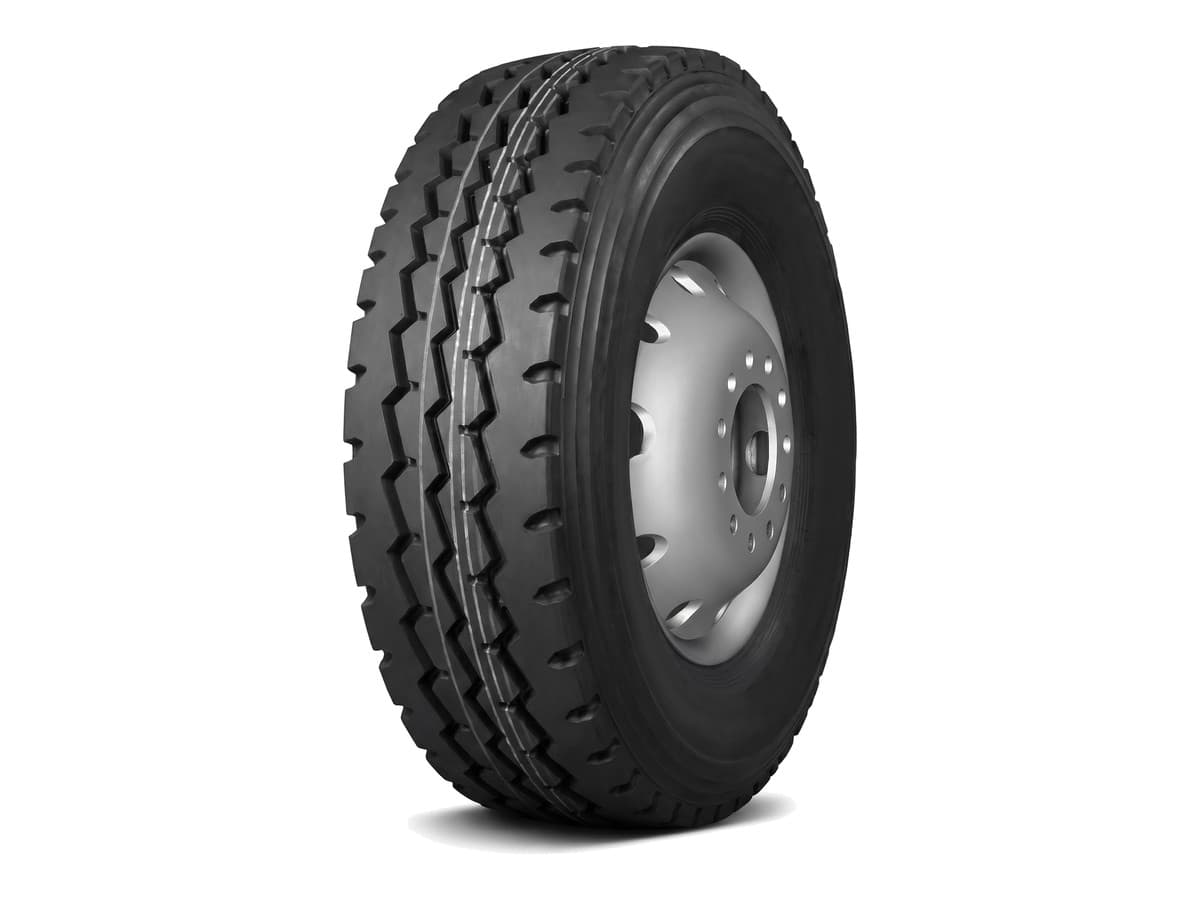

Lancaster MX813 On/off-road all-position tire
Truck & bus radial from Lancaster, all-position radial for on/off road service. Offered in 4 sizes, 11R22.5 to 11R24.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Rugged shoulder design for off road mobility
- Z-shaped groove design for all terrain types
- Special rubber compound fights chipping and cutting
- Strong casing for better protection of the inner components
Specification
- Brand
- Lancaster
- Pattern
- MX813
- Type
- Truck & bus radial (TBR)
- Position
- All-position radial for on/off road service
- Sizes
- 11R22.5 · 255/70R22.5 · 315/80R22.5 · 11R24.5
- Ply rating
- 14–20 PR
- Tread depth
- 14.3–17.5 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 144/142 M | 8.25 | 1054 mm | 279 mm | 2800 kg | 2650 kg | 720 kPa | 16.5 mm |
| 11R22.5 | 16 | 146/143 M | 8.25 | 1054 mm | 279 mm | 3000 kg | 2725 kg | 830 kPa | 16.5 mm |
| 255/70R22.5 | 16 | 140/137 M | 7.5 | 930 mm | 255 mm | 2500 kg | 2300 kg | 830 kPa | 14.3 mm |
| 315/80R22.5 | 20 | 161/154 L | 9.00 | 1076 mm | 312 mm | 4625 kg | 3750 kg | 900 kPa | 17.5 mm |
| 11R24.5 | 14 | 146/143 M | 8.25 | 1104 mm | 279 mm | 3000 kg | 2725 kg | 720 kPa | 16.5 mm |
| 11R24.5 | 16 | 149/146 L | 8.25 | 1104 mm | 279 mm | 3250 kg | 3000 kg | 830 kPa | 16.5 mm |
