TL150

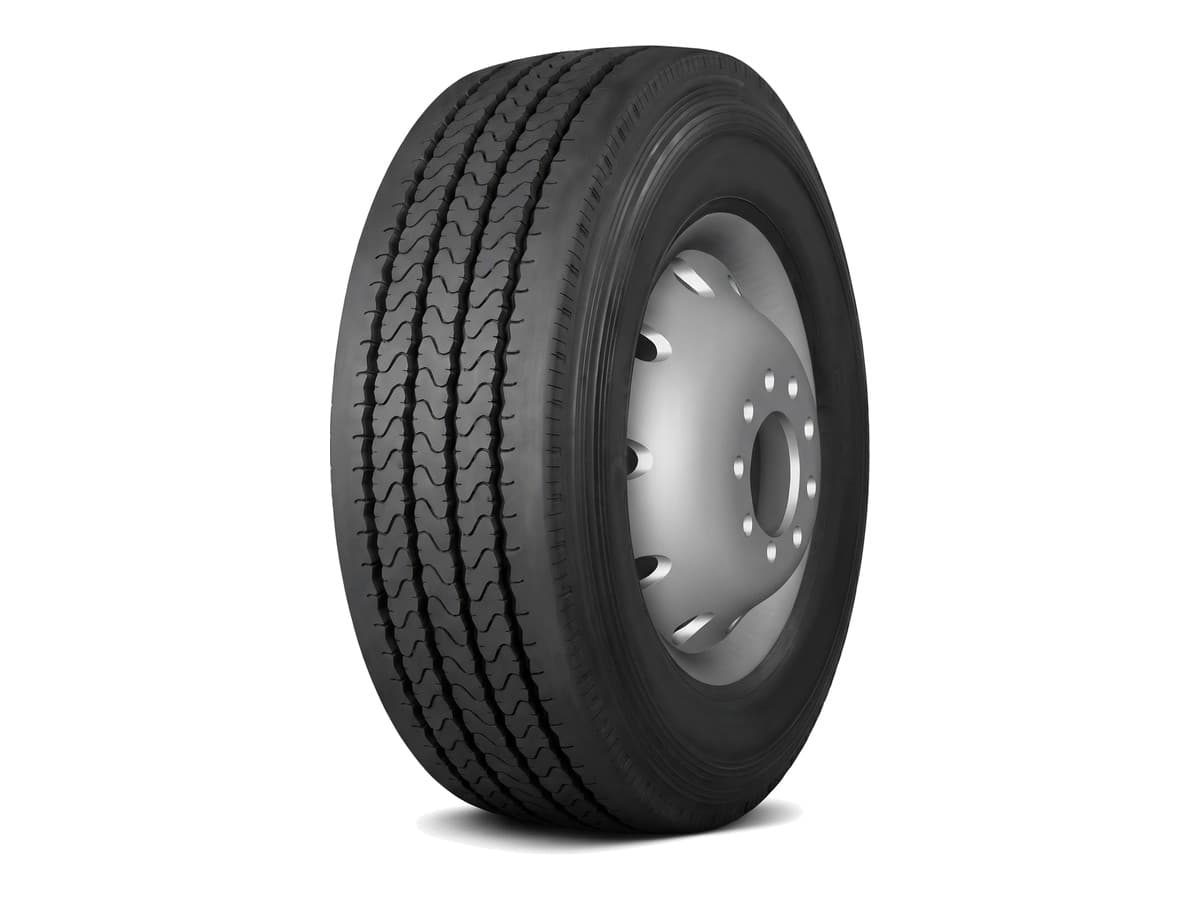

Lancaster TL150 All-position steer / trailer tire
Truck & bus radial from Lancaster, all-position · steering / trailer. Offered in 4 sizes, 11R22.5 to 11R24.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Ultra durable shoulder design, minimizes tearing and chipping
- Fuel efficient compound, long mileage
- Straight grooves promote even wear and dissipate water effectively
- Strengthened steel belt casing structure provides overall long tire usage
Specification
- Brand
- Lancaster
- Pattern
- TL150
- Type
- Truck & bus radial (TBR)
- Position
- All-position · steering / trailer
- Sizes
- 11R22.5 · 275/70R22.5 · 295/75R22.5 · 11R24.5
- Ply rating
- 14 PR
- Tread depth
- 11.7–14.8 mm
Sizes and load data
As printed in the Lancaster catalogue
| Size | PR | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 144/142 J | 8.25 | 1054 mm | 279 mm | 2800 kg | 2650 kg | 720 kPa | 11.7 mm |
| 275/70R22.5 | 14 | 142/139 M | 8.25 | 958 mm | 276 mm | 2650 kg | 2430 kg | 760 kPa | 14.8 mm |
| 295/75R22.5 | 14 | 144/141 L | 9 | 1014 mm | 298 mm | 2800 kg | 2575 kg | 760 kPa | 11.7 mm |
| 11R24.5 | 14 | 146/143 L | 8.25 | 1104 mm | 279 mm | 3000 kg | 2725 kg | 720 kPa | 11.7 mm |
