CT401

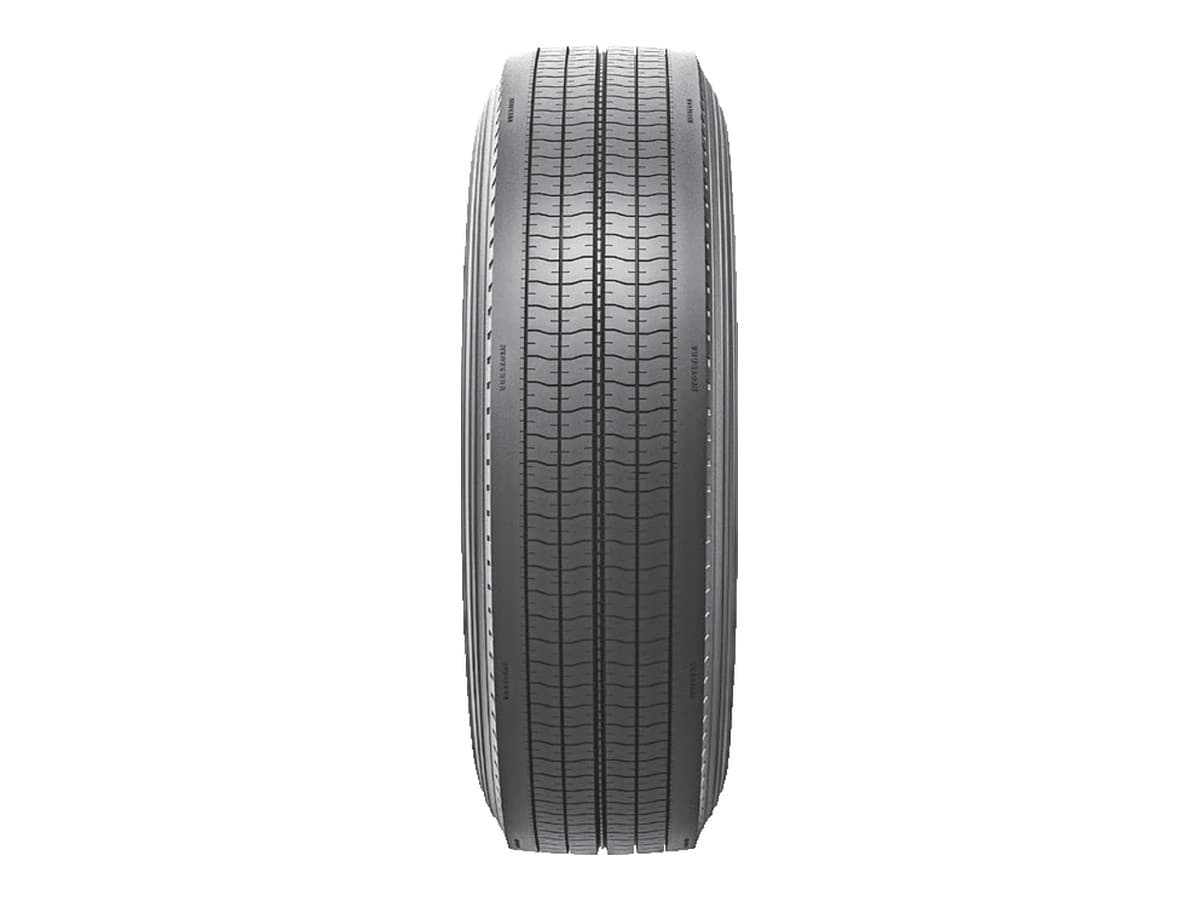

Neoterra CT401 Commercial trailer tire

Truck & bus radial from Neoterra, commercial trailer. Offered in 3 sizes, 11R22.5 to 11R24.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.

Features

Low Rolling Resistance. Special tread compound with shallow non-skid offers low rolling resistance.
Enhanced Toughness and Even Wear. Solid shoulder rib with unique pressure distribution grooves delivers enhanced toughness and promotes long, even wear.
Wet Weather Stability. Wide center groove delivers superior water evacuation for increased stability in wet road conditions.
Guaranteed Retreadability. Premium casing construction promotes multiple retreads.

Specification

Brand: Neoterra
Pattern: CT401
Type: Truck & bus radial (TBR)
Position: Commercial trailer
Sizes: 11R22.5 · 295/75R22.5 · 11R24.5
Ply rating: 14–16 PR
Load range: G / H
Tread depth: 11.7 mm (14.7/32")

Sizes and load data

As printed in the Neoterra catalogue

Size	PR / load range	Load index / speed	Rim	Overall diameter	Section width	Max load, single	Max load, dual	Pressure	Tread depth
11R22.5	14 / G	144/142 M	8.25	1054 mm / 41.5 in	279 mm / 11.0 in	2800 kg / 6175 lb	2650 kg / 5840 lb	720 kPa / 105 psi	11.7 mm / 14.7/32"
11R22.5	16 / H	146/143 M	8.25	1054 mm / 41.5 in	279 mm / 11.0 in	3000 kg / 6610 lb	2725 kg / 6010 lb	830 kPa / 120 psi	11.7 mm / 14.7/32"
295/75R22.5	14 / G	144/141 M	8.25	1014 mm / 39.9 in	298 mm / 11.7 in	2800 kg / 6175 lb	2575 kg / 5675 lb	760 kPa / 110 psi	11.7 mm / 14.7/32"
295/75R22.5	16 / H	146/143 M	8.25	1014 mm / 39.9 in	298 mm / 11.7 in	3000 kg / 6610 lb	2725 kg / 6005 lb	830 kPa / 120 psi	11.7 mm / 14.7/32"
11R24.5	14 / G	146/143 L	8.25	1116 mm / 43.9 in	279 mm / 11.0 in	3000 kg / 6610 lb	2725 kg / 6010 lb	720 kPa / 105 psi	11.7 mm / 14.7/32"
11R24.5	16 / H	149/146 L	8.25	1116 mm / 43.9 in	279 mm / 11.0 in	3250 kg / 7160 lb	3000 kg / 6610 lb	830 kPa / 120 psi	11.7 mm / 14.7/32"
