MS321

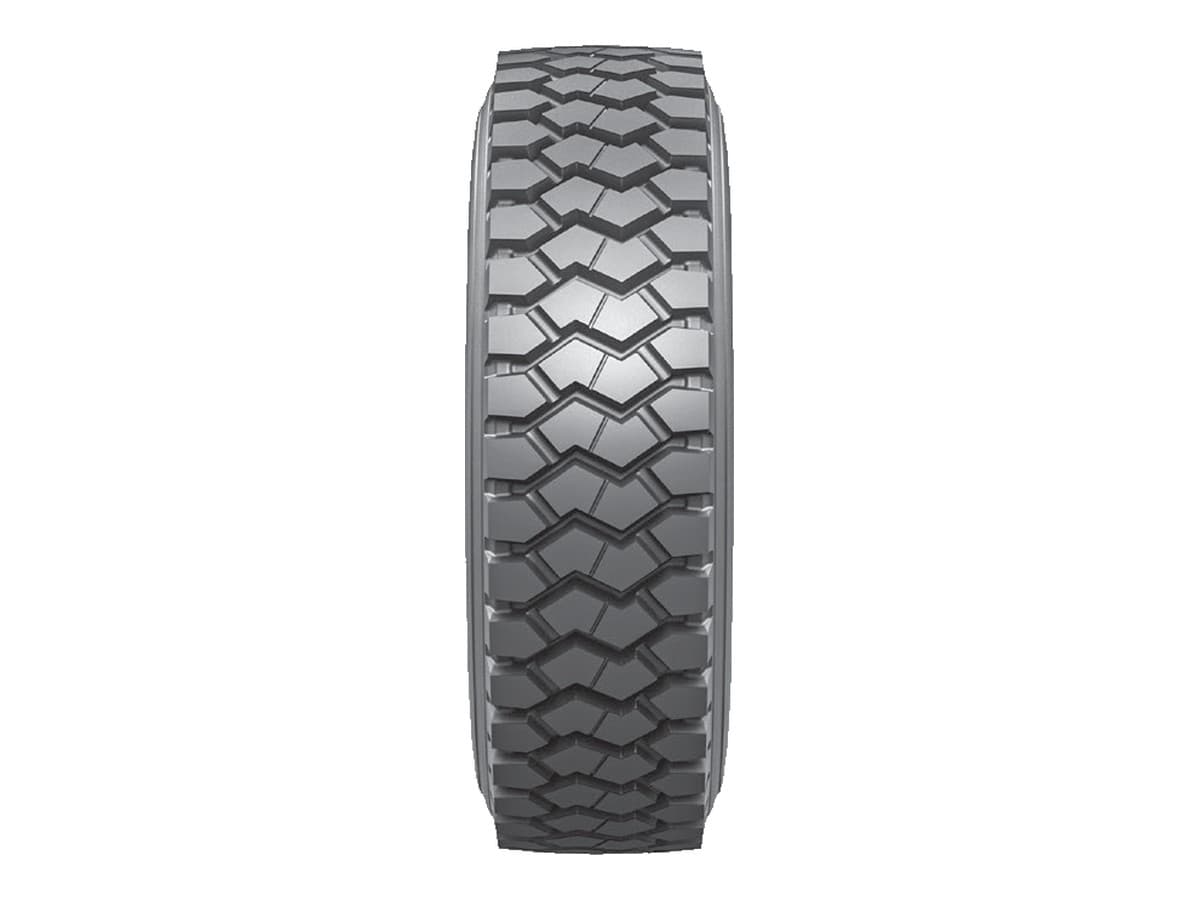

Neoterra MS321 Mixed-service drive tire
Truck & bus radial from Neoterra, mixed service drive. Offered in 3 sizes, 11R22.5 to 11R24.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Extended Service Life. Dependable cut/chip resistance compound promotes extended service life.
- Excellent Traction. Rugged lug design with deep non skid offers excellent traction in severe off-highway service.
- Guaranteed Retreadability. Premium enhanced casing construction with deep undertread provides excellent retreadability.
Specification
- Brand
- Neoterra
- Pattern
- MS321
- Type
- Truck & bus radial (TBR)
- Position
- Mixed service drive
- Sizes
- 11R22.5 · 315/80R22.5 · 11R24.5
- Ply rating
- 14–20 PR
- Load range
- G / H / L
- Tread depth
- 23.8 mm (30.0/32")
Sizes and load data
As printed in the Neoterra catalogue
| Size | PR / load range | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 / G | 144/142 L | 8.25 | 1065 mm / 41.9 in | 279 mm / 11.0 in | 2800 kg / 6175 lb | 2650 kg / 5840 lb | 720 kPa / 105 psi | 23.8 mm / 30.0/32" |
| 11R22.5 | 16 / H | 146/143 L | 8.25 | 1065 mm / 41.9 in | 279 mm / 11.0 in | 3000 kg / 6610 lb | 2725 kg / 6005 lb | 830 kPa / 120 psi | 23.8 mm / 30.0/32" |
| 315/80R22.5 | 20 / L | 161/154 K | 9.00 | 1076 mm / 42.4 in | 312 mm / 12.3 in | 4625 kg / 10200 lb | 3750 kg / 8270 lb | 900 kPa / 130 psi | 23.8 mm / 30.0/32" |
| 11R24.5 | 14 / G | 146/143 L | 8.25 | 1116 mm / 43.9 in | 279 mm / 11.0 in | 3000 kg / 6610 lb | 2725 kg / 6010 lb | 720 kPa / 105 psi | 23.8 mm / 30.0/32" |
| 11R24.5 | 16 / H | 149/146 L | 8.25 | 1104 mm / 43.5 in | 279 mm / 11.0 in | 3250 kg / 7160 lb | 3000 kg / 6610 lb | 830 kPa / 120 psi | 23.8 mm / 30.0/32" |
