MS331

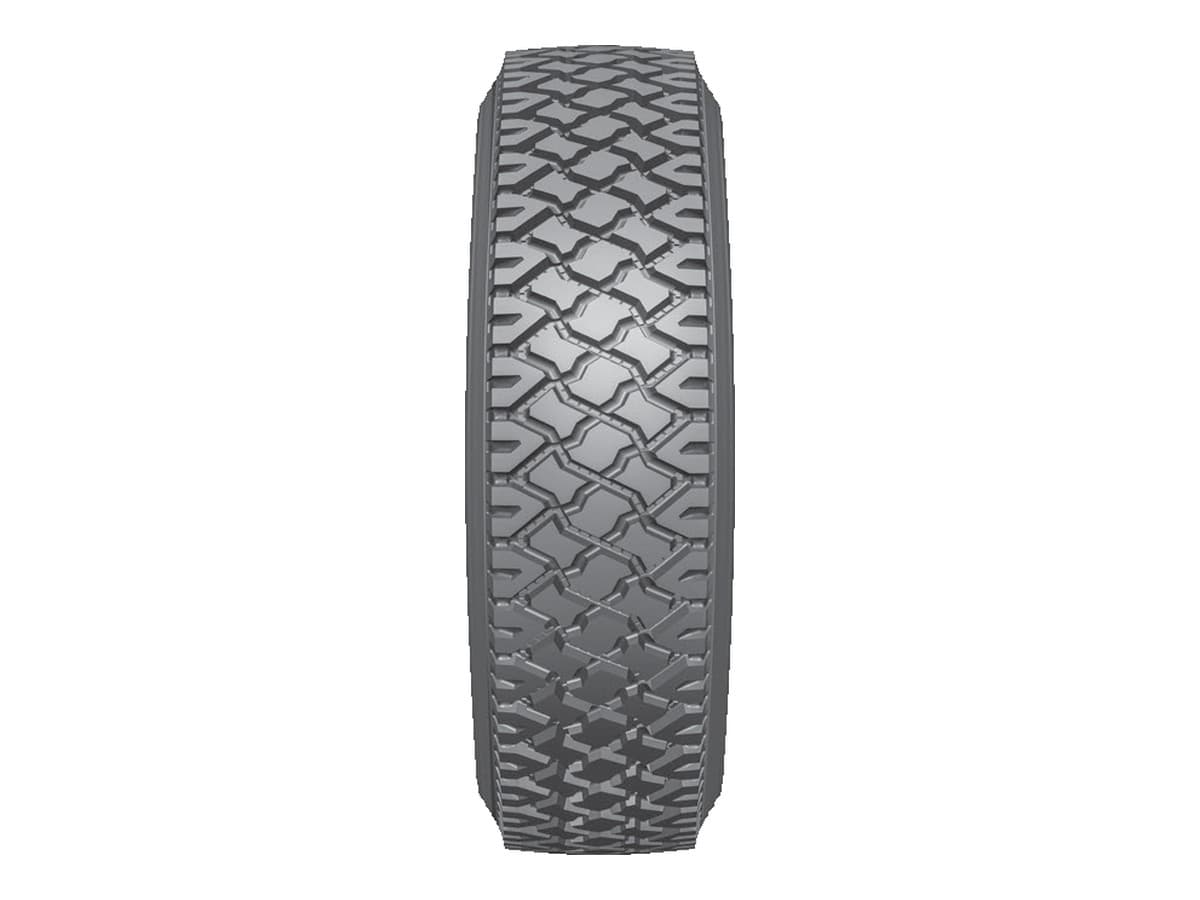

Neoterra MS331 Mixed-service drive tire
Truck & bus radial from Neoterra, mixed service drive. Offered in 2 sizes, 11R22.5 to 11R24.5. A tire is matched on the size on the sidewall, not on the cab, so it goes on any make that runs that size.
Features
- Extended Service Life. Premium severe service compound offers outstanding cut/chip resistance and extended service life in tough driving conditions.
- Ultimate Off-Road Traction. Extra deep 33/32nd aggressive self-cleaning tread helps resist mud or snow buildup and promote ultimate traction.
- Enhanced Stability. Optimized block design with in-between bridges allows enhanced stability and constant gripping power.
- Guaranteed Retreadability. Premium enhanced casing construction with deep undertread provides excellent retreadability.
Specification
- Brand
- Neoterra
- Pattern
- MS331
- Type
- Truck & bus radial (TBR)
- Position
- Mixed service drive
- Sizes
- 11R22.5 · 11R24.5
- Ply rating
- 14–16 PR
- Load range
- G / H
- Tread depth
- 26.2 mm (33.0/32")
Sizes and load data
As printed in the Neoterra catalogue
| Size | PR / load range | Load index / speed | Rim | Overall diameter | Section width | Max load, single | Max load, dual | Pressure | Tread depth |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 / G | 144/142 L | 8.25 | 1065 mm / 41.9 in | 279 mm / 11.0 in | 2800 kg / 6175 lb | 2650 kg / 5840 lb | 720 kPa / 105 psi | 26.2 mm / 33.0/32" |
| 11R22.5 | 16 / H | 146/143 L | 8.25 | 1065 mm / 41.9 in | 279 mm / 11.0 in | 3000 kg / 6610 lb | 2725 kg / 6005 lb | 830 kPa / 120 psi | 26.2 mm / 33.0/32" |
| 11R24.5 | 14 / G | 146/143 L | 8.25 | 1116 mm / 43.9 in | 279 mm / 11.0 in | 3000 kg / 6610 lb | 2725 kg / 6010 lb | 720 kPa / 105 psi | 26.2 mm / 33.0/32" |
| 11R24.5 | 16 / H | 149/146 L | 8.25 | 1104 mm / 43.5 in | 279 mm / 11.0 in | 3250 kg / 7160 lb | 3000 kg / 6610 lb | 830 kPa / 120 psi | 26.2 mm / 33.0/32" |
